VTFS1C150: FieldStation 15 Inch IP67 Man-Portable Outdoor Computer

FieldStation FieldStation
FieldStation FieldStation
FieldStation FieldStation
FieldStation FieldStation
FieldStation FieldStation
FieldStation FieldStation
FieldStation FieldStation

Looking for an all-weather monitor or computer? Click here.

RoHS Compliant

Built to rugged MIL-Spec specifications

The units can be manufactured with either an embedded or removable computer. The FieldStation can also be built to your specifications with up to 3, 1 × 6 function keypad switches embedded in the bezel, and up to 8 (including power), MIL-DTL 38999 I/O connectors in the rear of the unit.

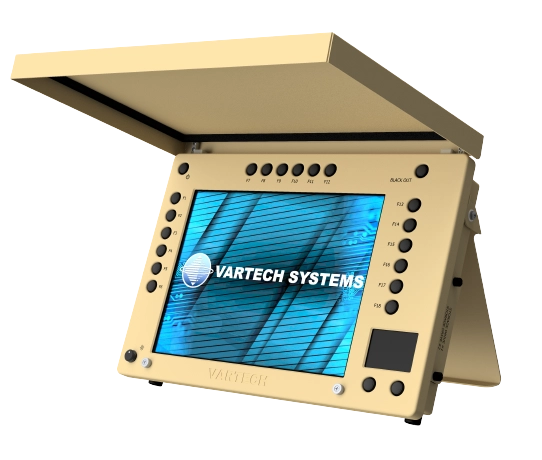

VarTech’s 15″ rugged all-in-one computer system designed to support mission-critical field and ground-mobile applications.

This man-portable panel computer system is intended specifically for use in rugged military and blue light environments. Constructed to IP67 specifications, the computer can be deployed to support mission operations including access to satellite communication systems, field surveillance, enhanced situational awareness, and target acquisition radar.

Olive Drab Powder CoatDessert Tan Powder CoatBlack Powder Coat

Available in custom colored powder coated aluminum (NEMA 6). Standard colors displayed.

REQUEST PRICING

Looking for something special?
Contact us with any custom request.
CUSTOM REQUEST FORM


FieldStation is available with either an embedded or removable computer platform.

The FieldStation embedded computer is available with an Intel quad-core CPU or with an Intel i7 CPU. These powerful embedded computers have up to 8 or 16 GB of memory, SATA-300 or CFAST storage devices, and Windows 32/64-bit operating systems.

Removable computers offer a low-power nanocomputer platform with an Intel quad-core CPU or with Intel 8th generation i7 CPU.  These Trusted Platform Module (TPC) computers are available with either 8 or 16 GB of memory, 128 GB or 1 TB SSD, and Windows 32/64-bit operating systems.

FieldStation Removable Computer or Storage Drive Close Up
FieldStation removable computer or storage drive

FieldStation Specifications:

Standard Features:

  • Milled aluminum enclosure
  • Powder coated finish
  • High luminance LED backlights
  • Proprietary film stack
  • Optical bonding (VBOND): adhering a cover glass, protective overlay, or touchscreen to the front surface of the LCD using an optical-grade silicone to increase solar reflectivity and ruggedness.
  • Anti-reflective coating
  • Brightness level 1500 nits
  • Advanced wide range dimming ratio – from 100% to true black
  • Vibration resistant low-profile video controller board or motherboard
  • Low profile cable assemblies/connections
  • Potted components where applicable
  • Vibration dampening standoffs
  • MIL-DTL 38999 I/O connectors
  • Up to three 1 × 6 function keypad switches embedded around the display perimeter
  • Maximum of 18 programmable key switches
  • The membrane contact switch converts to a standard HID keyboard code
  • Rear kickstand, with front-hinged hood and 1 × top handle
  • Available touchscreens: PCAP and ArmorTouch
  • Power input: 9-36 VDC internal power supply
  • Operating temperature: -20° to 70° C (Extreme Temperature Package available)
  • Relative humidity: ≤ 0% to ≤ 100%
  • Altitude: 10,000 ft MSL
  • Embedded or removable computer
  • Solid-state components
  • Operating systems: Windows 10 Professional 64-bit (standard)
  • Dual removable storage drives in lieu of removable computer
  • 2-year warranty

Specifications:

BrightnessResolutionViewing AngleContrastAspect RatioTouchscreen*Power Consumption**Approximate Weight†Maximum I/O Ports Avail.
(Including Power)
1500 nitsXGA 1024 x 76880°/80°/60°/80°800:14:3PCAP/AT≈ 47 W≈ 16.8 Lbs8
Sunlight readable
* PCAP – projective capacitive touch, and AT – ArmorTouch glass-on-film resistive touch
** Calculated at 12 V DC
† Weight may differ based on overall configuration

Dimensions (W × H × D):


Standard Configuration18.25” × 12.5” × 2.59”

Standard Motherboard Specifications:

ProcessorMemoryStorage DriveOperating SystemAvailable I/O Ports
Intel Atom E3845Up to 8 GB1 × SATA-300
1 × CFAST
Win 7: 32/64-bit,
Win 10: 32/64-bit
2 × USB 2.0
2 × LAN
i5-8365UE
i7-8365UE
Up to 32 GB1 × SATA
6 G/s with 5 V SATA power connector
Win 10: 32/64-bit4 × USB 3.1
3 × LAN
Non-standard motherboards and processors available depending on panel size. Please inquire. Motherboard selection may affect operational temperature

Removable computer specifications:

ProcessorMemoryStorage DriveOperating SystemTPMAvailable I/O Ports
Intel Atom E38458 GB128 GB SSDWin 10: 64-bit1.24 × USB 2.0
1 × USB 3.0
1 × LAN
i7-8365UE32 GB512 GB SSDWin 10: 32/64-bit2.04 × USB 2.0
1 × USB 3.0
1 × LAN

FieldStation Core Model Number Breakdown:

FieldStation Core Model Number Breakdown

Available Options:

  • Private labeling: company logo or corporate identity for OEM/VAR applications
  • Coatings: custom powder-coats, conformal coatings, paint, and chemical resistant finishes, CARC paint
  • Avionic bond: high altitude 40,000 ft MSL
  • Video out
  • Push-button dimmer, or auto-dimming
  • Wireless connectivity: Bluetooth, WiFi, integrated router/WiFi repeater
  • Expansions: PCIe, mPCIe, M.2, SIM card slot
  • Storage: HDD, SSD, removable drives, various capacities, multiple drives
  • Operating system: Windows 10 Professional – 32 & 64-bit, Windows 7 – 32 & 64-bit, CentOS, RHEL, Ubuntu (supported)
  • ThinManager® thin client management
  • 1 × VGA, 1 × HDMI, 1 × DisplayPort, RS-232/422/485, Fiber Optic LAN
  • Additional and/or alternate I/O ports available. Please contact your sales representative.

DoD Win 10 SHB compliance:

  • Trusted platform module (TPM)
  • Credential guard
  • UEFI secure boot

Supported when equipped with Removable Computer

* Don't see the available option that you are looking for? Contact us with any custom request.

Mechanical Drawings:

Click image to download pdf.

Standard I/O Connectors:

  • MIL-DTL 38999: military standard, sealed, vibration and shock-resistant quick-coupling circular locking connectors

    38999 Connectors

Available Ruggedized I/O Connectors:

  • M8/M12/M23: industrial automation, vibration and shock-resistant

    M12 Connectors

  • IP67 push/pull locking style: standard connector for All-Weather series

    LEMO Connectors

Integrated Accessories:

  • Laptop-Style Mouse Pad

    Laptop-Style Mouse Pad

  • Collapsible & Removable Kickstand

    Collapsible & Removable Kickstand

  • Removable Computer

    Removable Computer

  • Removable Storage Drive

    Removable Storage Drive

  • Detachable Cover

    Detachable Cover

  • Rugged Carrying Handle

    Rugged Carrying Handle

Environmental Functional Upgrade Packages:

VarTech’s Environmental Functional Upgrade Packages allow for custom COTS solutions using standard feature sets.

  • Extreme Temperature Package (-40° C to 70° C)
    • Integrated heater and thermostat
    • Wide temperature LCD panel
    • Harsh environment video controller board or motherboard/SSD/RAM
    • Optional: heat-reflective powder-coat
    • Optional: uninterrupted wide temperature dual Power Supply Unit (PSU) system
  • EMI/EMC 461 AS Package
    • All-Surface ingress protection and Faraday cage design
    • Protective window or touchscreen equipped with 8 Ohm ITO for surface ship limits and 100 OPI SSTL mesh or 160 OPI copper printed mesh for Army ground limits
    • Enhanced EMI conductive gaskets for MIL-STD 461 protection while maintaining seal up to IP67
    • MIL-DTL 38999 connectors with backshell assembly
    • Cable braiding, ferrites, and in-line bandpass filters where applicable
    • CE101, CE102, CS101, CS106, CS114, CS115, CS116, RE101, RE102, RS101, RS103 (Designed to meet based on similar VarTech Systems Designs)
    • Optional: Mil-STD 1275
  • NVIS Dual Mode Compatibility Package
    • NVIS MIL-STD 3009 class B green (night mode)
    • Brightness levels from 4 nits to 30 nits (night mode)
    • Toggle between day/night mode via the one-touch tactile button
    • Dimming: Manual dimmer dial – 1000:1 dimming ratio, or auto-dimming
    • ITAR restrictions apply
    • Optional: backlight kill switch
  • Vandal/Impact Resistant Package
    • Impact resistant protective overlay glass
    • 8H abrasion-resistant overlay glass
    • Chemical and stain resistant glass and surfaces
    • Tamper-proof conduit connectors
    • Optional: PCAP touchscreen
